G301 Panoramic Glass Railing with Wall-Mounted Fixing
Home / Our Products / Railings / G301 Panoramic Glass Railing with Wall-Mounted Fixing
The G301 railing, a new system to be installed on a low wall, is ideal for replacing iron railings, offering a modern and functional style.
Thanks to its modularity, it is possible to follow the layout of the wall, creating an anti-climb barrier that is practical and quick to install.
The Jolly Pack system allows precise adjustment and perfect alignment of the glass panels.
- FEATURES AND ADVANTAGES
- DETAILS
- The adjustment of the railing glass, possible even by just 2°, is guaranteed by the alignment system.

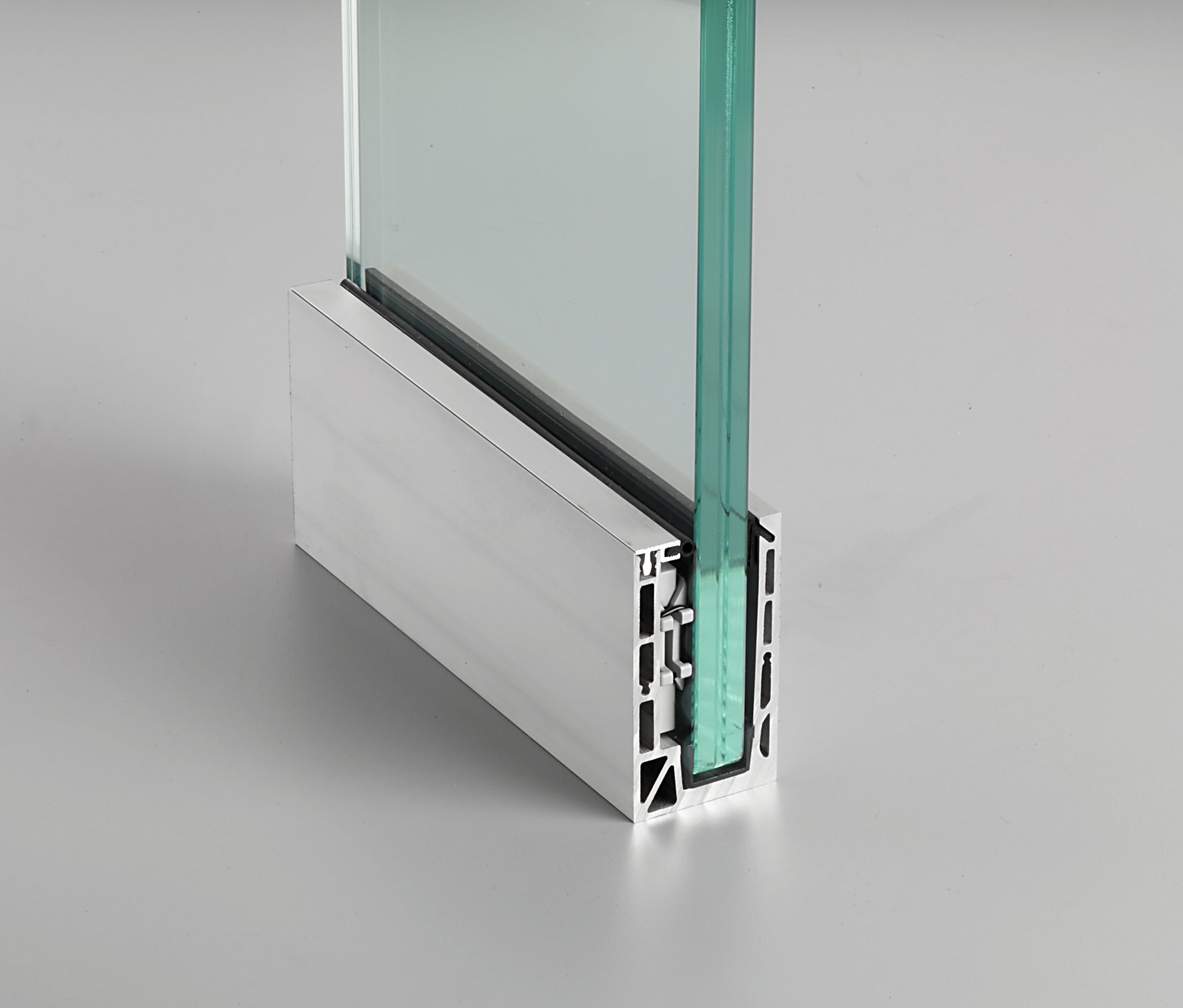

The inclination can be adjusted with an Allen key, without any invasive intervention. - The glass used in the system has a thickness of 8+8, is tempered and heat-strengthened with rigid PVB.
- Minimum glass dimensions: L 980 mm, H 700 mm.
- Anti-infiltration gaskets pressed into the dedicated groove.
- To ensure resistance to load, the railing profile must be fixed onto reinforced concrete, respecting the drilling pattern already made on the balustrade.

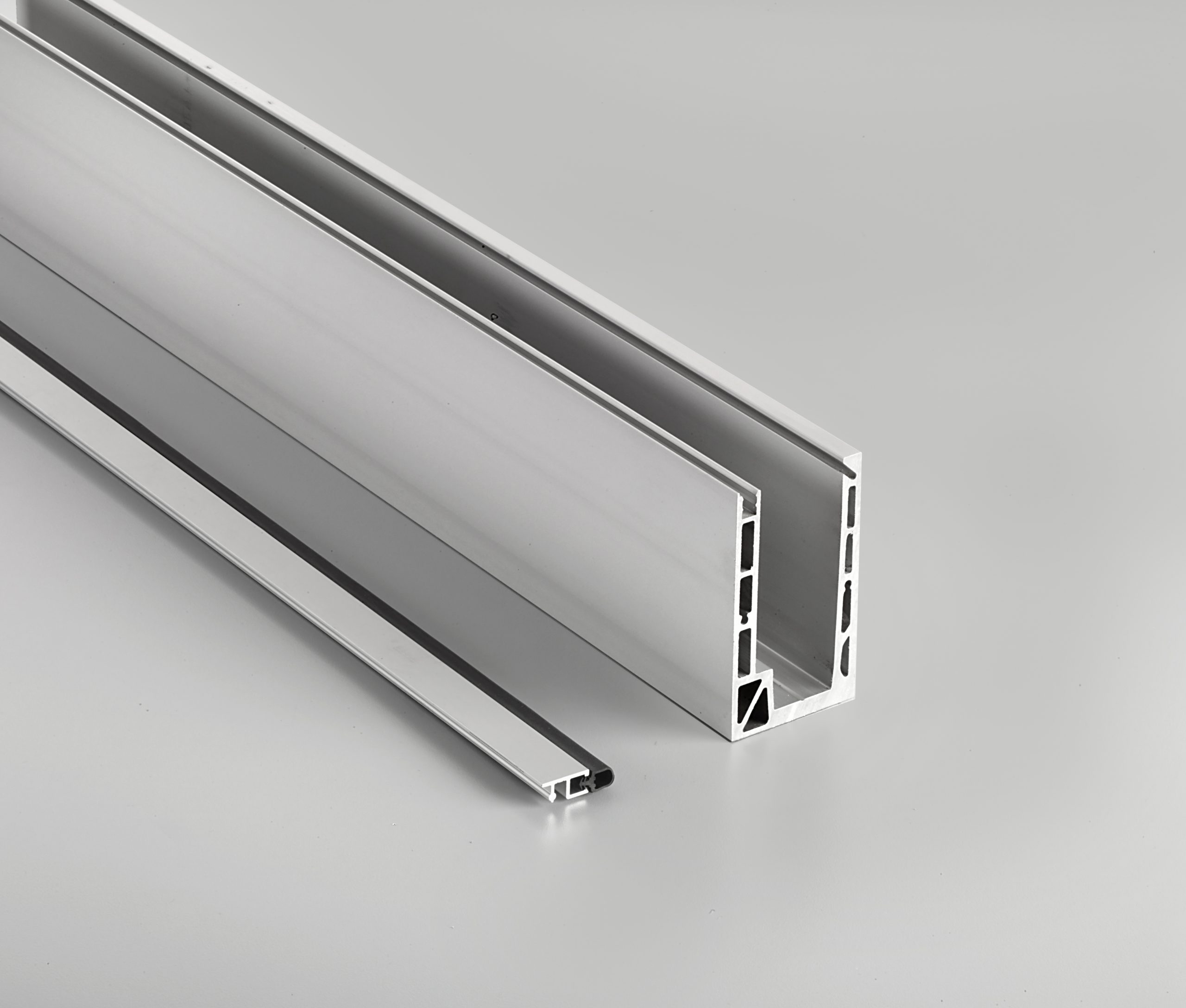

- The profiles, extruded in aluminum alloy 6063 T66, can be installed, upon request and depending on the intended use, above floor level or recessed.
- The profiles are certified according to the following standards:
- UNI 11678:2017 of 11/05/2017 “Glass for construction – Glass cladding elements with anti-fall function – Resistance to linear static load and dynamic load – Test methods”;
- Italian Ministry of Infrastructure Decree 15/01/2008 “Technical standards for construction”, published in the Official Gazette No. 29 of 04/01/2008 – General Series, limited to test loads.
