G55 – PANORAMIC SLIDING SYSTEM
Home / Our products / Aluminium Frames / Sliding / G55 – PANORAMIC SLIDING SYSTEM
Minimal design, maximum transparency and high performance
The G55 – Panoramic Sliding System is an aluminum solution designed to enhance natural light and create a smooth connection between indoors and outdoors. Thanks to its essential design and large glazed surfaces, it allows the creation of openings with a strong aesthetic impact, offering visual continuity that makes spaces brighter, more modern, and welcoming.
Attention to design details results in a system able to combine architectural elegance and everyday comfort: slim profiles, clean lines, and discreet components reduce the presence of aluminum to a minimum, leaving space for glass transparency and maximum openness towards the outside. The option of adopting a flush floor threshold further helps eliminate barriers, facilitating passage and ensuring a harmonious connection between spaces, both in residential settings and in more advanced projects.
In addition to its panoramic design, the system is developed to ensure high performance, offering reliable solutions in terms of insulation, security, and functionality. The sashes guarantee comfortable use thanks to smooth and silent movement, while the structure allows different design requirements to be met, even with more complex configurations.
To meet different performance and aesthetic needs, G55 is available in two variants:
- ASE 51 PD, ideal for those looking for a minimal panoramic effect and extremely pleasant everyday comfort
- AS PD 75.HI, designed for those who want superior performance and maximum efficiency, with the possibility of manual or motorized solutions
- PLUS
- DIFFERENCES BETWEEN THE VARIANTS

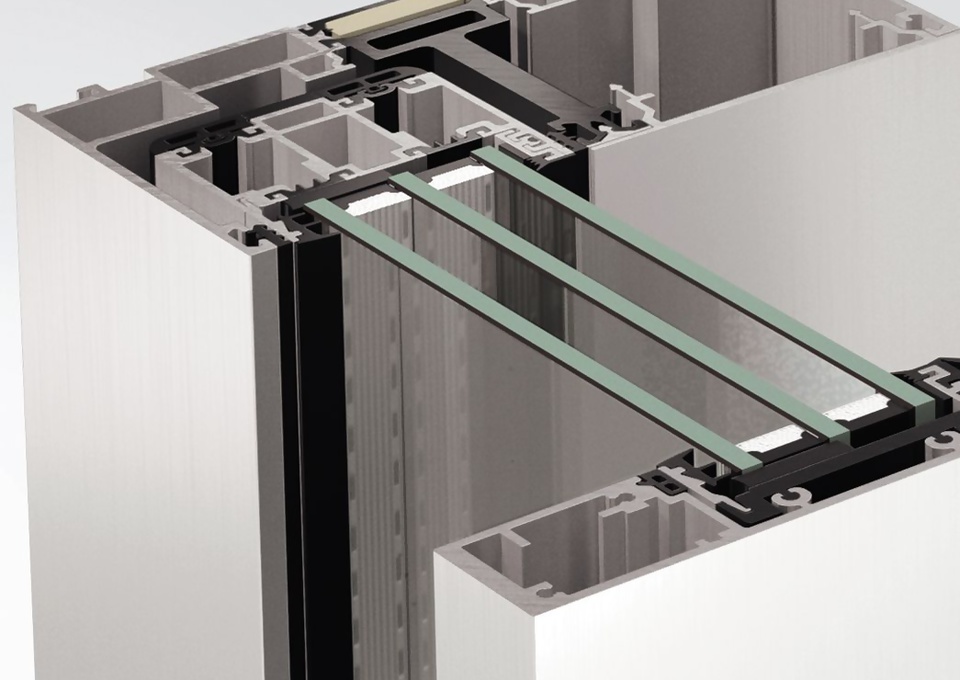

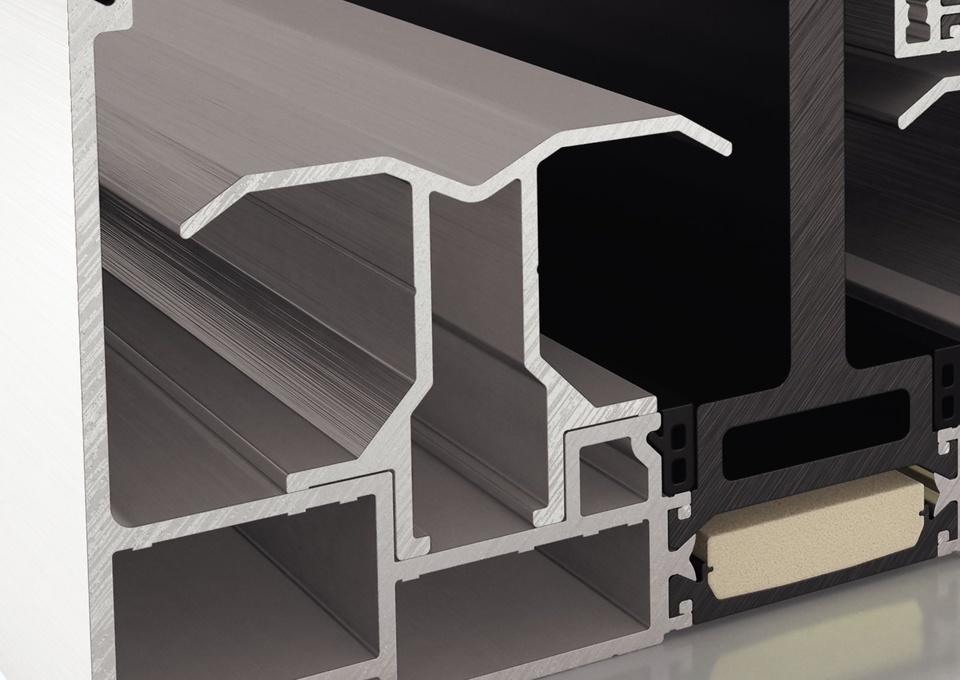

- PROFILES
- Panoramic design with slim profiles and maximum transparency
- Large glazed surfaces for brighter spaces

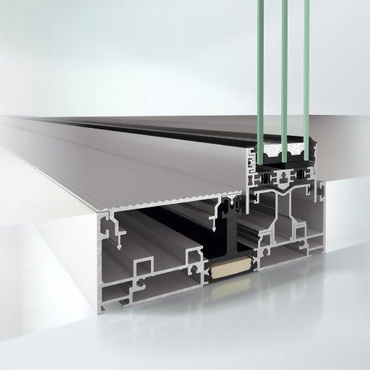

- Easier passage thanks to dedicated threshold solutions

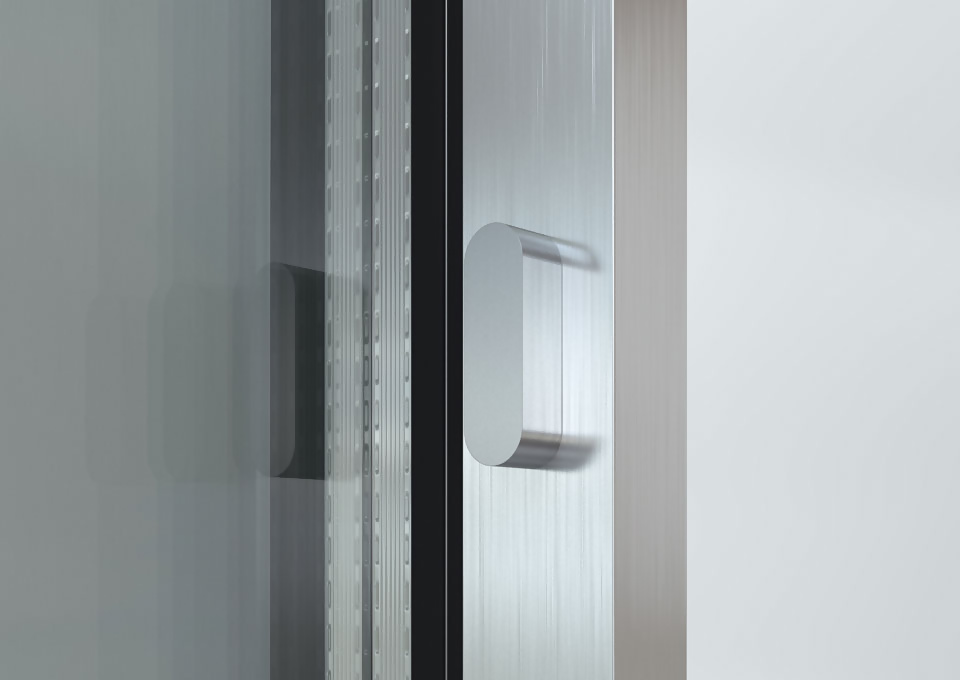

- Concealed locking elements for a clean and essential aesthetic
- Burglary resistance up to RC 2
- Air permeability: Class 4
- Wind resistance: at least Class C3
| Feature | ASE 51 PD | AS PD 75.HI |
| Window Uw value ≥ | 1.3 W/(m²·K) | 0.86 W/(m²·K) |
| Maximum sash weight | 400 kg | 800 kg |
| Max glass/panel thickness | 42 mm | 60 mm |
| Sash thickness | 51 mm | 75 mm |
| Sash height (min–max) | 1500…2750 mm | 1000…3500 mm |
| Sash width (min–max) | 500…2900 mm | 1000…3500 mm |
| Driving rain watertightness | Class 9A | Class 8A |
| Wind resistance | Class C3 | Class C3 / B4 |
| Threshold | “0 Level” (height > 20 mm) | threshold height 0 mm |
| Minimum visible section | mullion min. 32 mm | interlock zone min. 35 mm |
| Track material | Stainless steel | Aluminum |
| Motorization / TipTronic | manual | TipTronic / electric drive available |
Request product information
